Product Name
Description
- Up to 16 feedthroughs on the same plate
- 1/4 NPT-Male ANSI or ISO
- Choice of carbon or stainless steel
- Fits with optinal JBox
- Can be welded or bolted
- Can be custom made
upon specifications
Transformer tank wall mounting plate for Neoptix optical feedthroughs along with the JBox enclosure option.
DOWNLOAD THE PDF DATASHEET
of the Tank Wall Plate
The Neoptix TWP tank wall plate is specifically designed for installation onto your power transformer tank wall. It has to be mated with our OFT optical feedthroughs.
As a standard item, the TWP is made out of cold finished 1018 steel (ASTM A108). If needed, it can also be manufactured using any other material, including stainless steel 316.
The tank wall plate accommodates from 1 to 16 optical feedthroughs and is supplied with plugs to close unused holes. It comes standard with 1/4 NPT ANSI threads. ISO threads are also available.
The TWP can be welded directly on the tank wall. It can be delivered with two tapered 10-24 UNC holes for clamping the TWP during welding process. The tank wall plate is also available upon request with eight unthreaded holes for direct bolting, with gasket or O'Ring, onto the tank wall.
The Neoptix tank wall plate can also be supplied with the necessary threaded holes for a direct mounting of the Neoptix JBox protective enclosure. This unique junction box let you saved precious time and ressources to achieve a complete fiber optic installation.
Each NPT hole is numbered on both sides of the plate using a deep engraving technique allowing perfect reading of numbers even after being painted. Moreover, both interior and exterior sides are also engraved.
Neoptix has a bank of CAD drawings of many different models of Tank Wall Plates that can fulfill your needs; Contact Factory for more details.
Specifications
| Product Name: | TWP - Tank Wall Plate |
|---|---|
| Number of feedthroughs : | Available with up to 16 NPT-F holes |
| Dimension : | Standard: Ø10 inches, 0.5 inch thickness Optional: Ø12 inches, 0.5 inch thickness or any other dimensions and feedthrough density as per your specifications |
| Material : | Standard: Cold Finished 1018 Steel (ASTM A108) Optional: Other material such as Stainless Steel 316 |
| Mounting methods : | Standard: Direct welding onto tank wall Optional: Bolting threads with or without recess for gasket |
| Mounting clamps : | Standard: none Optional: Tapered 10-24 UNC holes (2x) for clamping |
| NPT Type : | Standard: NPT 1/4-18, ANSI threads Optional: NPT 1/4-18, ISO threads |
| Compatibility : | Compatible with Neoptix OFT optical feedthroughs (Also compatible with Nortech-Fibronic, Inc. products |

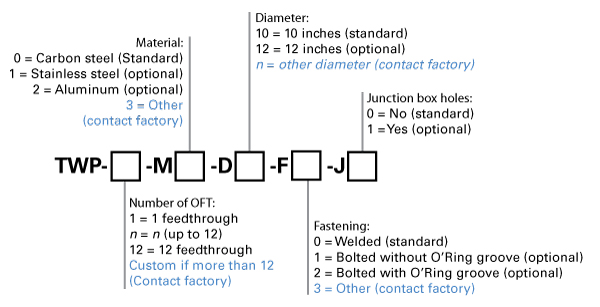

| Ordering codes: |
Literature/images
LITERATURE
- Tank Wall Plate Datasheet
Format: PDF - File size: 500 KB
IMAGES
Exemple of 12-ports Tank Wall Plate
Example of a bolted 6-port tank wall plate with JBox support and O'ring
Example of tank wall plate made out of stainless steel 304
All Neoptix tank wall plates have engraved port numbers on both sides by default
Accessories
JBox Protective enclosure for Neoptix Optical Feedthroughs (Part: JBX)
This protective box is designed to be mounted directly over the Neoptix tank wall plate. The JBOx has a flat section that accomodates conduit for routing the optical extension cables from the side of the transformer up to the signal conditioner.
