Neoptix Assistant Software
Description
- Support up to 4 systems on 16 COM ports
- Each channel is independent
- Full min/max alarm support
- Full data logging functions
- Bar-graph, trend-line or statistics display
A versatile Windows compatible control and datalogging software to enhance Neoptix temperature measurement systems
The Neoptix-Assistant software allows using your fiber optic temperature monitoring system in a highly flexible manner. Assistant features direct data logging of the temperature information acquired by the signal conditioners and also the full remote control of up to four instruments using a PC.

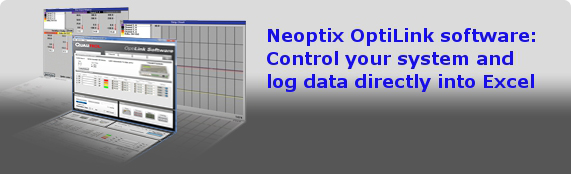

The Neoptix Assistant built-in functions allow real-time visualization of the temperature on bar graphs or strip charts directly on the PC. It is possible to adjust the refreshing rate and the scale of the information displayed. Moreover, channel can be individually enabled and customized by the user. For example, each probe can have its own name, description and color.

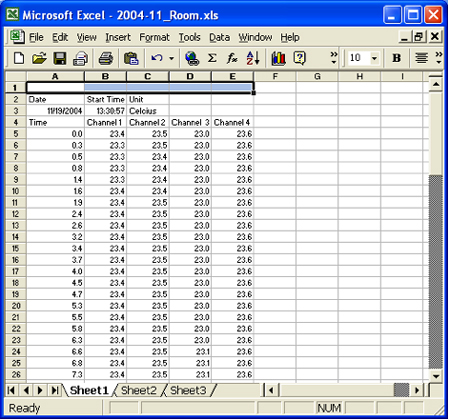

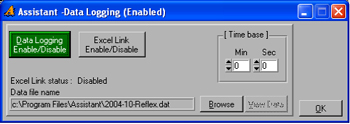

Neoptix Assistant features direct data logging onto a Microsoft Excel spreadsheet, saving the task of converting files into Excel native file format. Data can also be saved to a variety of standard formats.
Assistant supports simultaneously the acquisition of the temperature data from up to 4 independent signal conditioners on up to sixteen serial ports. Each one of these thermometers is connected to a PC COM ports through a RS-232C serial interface.
The Assistant software also provides a graphical user interface for the setup and configuration for the supported signal conditioners. Among many other features, Assistant allows the configuration of the span and zero baseline of analog outputs on each channel of the signal conditioners. Neoptix Assistant allows for probe correction of offsets and for punctual calibrations.
It is also possible with the software to set alarms based on a minimum and maximum temperature, a feature essential for temperature monitoring of critical experiments.
Assistant is compatible with Neoptix’s Nomad, HandyFlex, Reflex and T/Guard fiber optic signal conditioners. It runs on Microsoft Windows operating systems.Specifications
NEOPTIX ASSISTANT SOFTWARE MINIMAL REQUIREMENTS:
The following list includes the minimum requirements for running the Neoptix-Assistant software:
• A Pentium class or higher CPU
• VGA or higher resolution display system supported by Windows
• 64 MB of RAM memory
• At least 5MB of hard disk space
• A CD disk drive to load software (if requested, the software can be supplied on diskettes)
• A mouse or other Windows pointing device
• A RS-232 interface (COM1 to COM16). Up to 4 thermometer units are supported, each one
requiring its own COM port
• Windows 2000 or later
• A Windows supported printer.
Literature/images
IMAGES
Accessories
No accessories are available for the Neoptix Assistant Software
