Multiplex System

Description

Features
  • 16 or 32 channels
  • -200 to 300°C range
  • RS-232 Com link
  • Large LED display
  • No gage factor or calibration
  • Accuracy of ± 1°C

IMPORTANT NOTE: As of July 1st, 2007, the MultiPlex is discontinuated and is replaced by the OmniFlex System

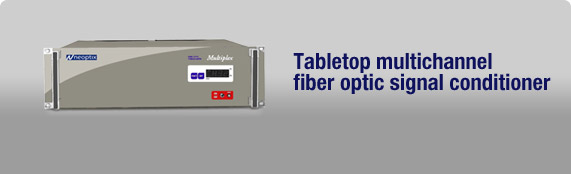

A multi-channel fiber optic signal conditioner for temperature measurement in industrial and laboratory applications.

Designed for dedicated industrial applications, the 16 or 32 channel Neoptix™ Multiplex™ signal conditioner is available in both a convenient 19 in. rack-mounted assembly to fit your control cabinet or a tabletop version.

The Multiplex's red LED display shows temperature in Celsius or Fahrenheit, even in low-light areas. A simple keypad gives access to important features such as channel enabling/disabling. The Multiplex also comes with an RS-232 interface. This convenient feature allows remote interfacing.

The Multiplex™ comes bundled with our Neoptix™ Assistant™ software for easy, real time data processing.

Unlike other technologies, Multiplex™ fiber optic sensors ensure reliable and accurate measurements even in hostile environments.

As gf all Neoptix signal conditioners, the Multiplex is compatible with older probes manufactured by Nortech-Fibronic, Inc.

Specifications

Number of channels 16 or 32, Channels can be disabled when not used.
Speed of measurement 0.7 seconds, or better, per channel for less than 50 meter probes. Each channel is refreshed every ~24 seconds when all 32 channels are enabled
Probes Full family of probes available. Probes can be interchanged without a need for factory recalibration.
Enclosure 19 inch wide, rack mount, 3U (13.3 cm high)
Electrical power Universal power supply, wall mount, included. Connection at rear of enclosure.
Computer interface RS-232, with commands that are compatible with the Reflex model. 9,600 baud. Includes possibilities to calibrate any channel on request. Connections at rear of enclosure.
Operating temperature 0 to 45 °C
Optical set-up Up to 32 channels, with ST connectors, at rear of enclosure
Allowable probe length 1 to 500 meters. No calibration required when changing probe length

Litérature/images

Accessories

No accessories are available for the Multiplex System
