HandyFlex portable instrument
Description
- Built-in data logging
- -200 to 300°C range
- RS-232 Com link
- Large LED display
- No gage factor or calibration
- Accuracy of ± 1°C
IMPORTANT NOTE: As of July 1st, 2006, the HandyFlex is discontinuated and is replaced by the Nomad
A portable single-channel fiber optic signal conditioner for temperature measurement for power transformer tests and laboratory applications
DOWNLOAD THE PDF DATASHEET
of the HandyFlex portable

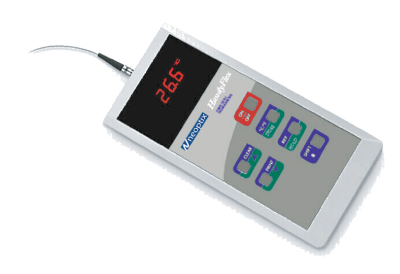

The Neoptix HandyFlex™ offers impressive versatility. Battery operated for maximum user freedom, this single-channel instrument allows you to move freely from one area to another to measure temperatures at various critical sensing points.
The HandyFlex large red LED display provides Celsius or Fahrenheit temperature readings that are easy to view in low-light areas. Display intensity automatically adjust to ambient light conditions. The 6 key, user friendly keypad lets you control all operations, including startup, temperature recording, reading printout, changing time and date, and capturing a reading while recording fast-changing temperature conditions. This multi-purpose instrument also comes with a built-in RS-232 interface to be used for remote interfacing. The instrument is also a perfect match with the optional Neoptix™ Assistant™ control PC software.
The HandyFlex runs on rechargeable Ni-Cad batteries or auxiliary alkaline battery backup, providing power for at least 10 hours of continuous use.
Part of Neoptix’s complete line of fiber-optic thermometers, this sturdy instrument has been used for more than 10 years in a variety of fields, for a wide range of industrial and research applications, such as hot spot monitoring inside power transformers during manufacturing and heat runs. It has also been used in various high voltage applications and MW/RF heating applications.
Its accuracy and high degree of sensitivity to temperature changes, as well as the selection of probe models available, make it a natural choice for a wide variety of applications. Moreover, the Neoptix™ sensors are interchangeable and no calibration or inconvenient gage factors are required when changing sensors.
Specifications
| Product Name : | HandyFlex™ Signal Conditioner |
|---|---|
| Number of channels : | 1 |
| Resolution : | 0.1°C (0.1°F) |
| Precision : | ±1°C (1.6°F) or 1 % FS |
| Response time : | 300 milliseconds; probe dependent |
| Operating temperature : | 0 to 45°C (32 to 113°F), non condensing |
| Storage temperature : | -30 to 60°C (-22 to 140°F); non-condensing |
| Display : | Large 3 characters LED display |
| Units : | User selectable; Metric or Imperial |
| Communication port : | RS-232 |
| Operating Mode : | Front panel or Neoptix™ Assistant™ PC Software or RS-232 commands |
| Analog outputs : | None |
| Data Logging : | Built-in, data plus time and date stamp in ASCII format |
| Probe Temperature range : | -80 to 250°C (-112 to 482°F); Cryogenic range available (down to 20 Kelvin) |
| Probe compatibility : | Compatible with all Neoptix signal conditioners; Also compatible with previous version of Nortech-Fibronic, Inc. systems with recalibration (see note 1) |
| Power : | 12 VDC, 300 mA Internal Ni:Cad batteries with universal charger (100/240 VAC) or auxiliary alkaline batteries (4 X AA) |

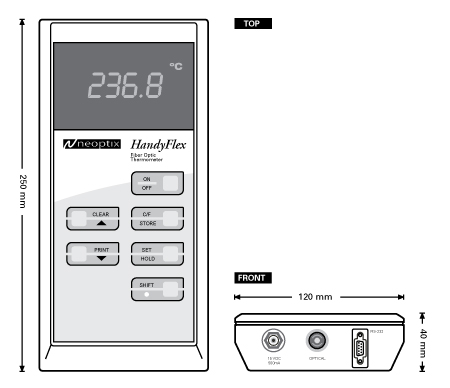

| Dimensions : | 250L X 120W X 40D mm |
| Weight: | 950 g |
Literature/images
LITERATURE
- HandyFlex™ Signal Conditioner Datasheet
Format: PDF - File size: 500 KB
IMAGES
Accessories
Specific accessories specifically designed to complement and enhanced your HandyFlex handheld signal conditioner:
Neoptix transport case (Part: HFX-CAS)
Protective case for HandyFlex signal conditioner, aluminum with foam to fit signal conditioner, sensors and accessories
Cryogenic Calibration (Part: CAL-CRY)
HandyFlex signal conditioner cryogenic range special calibration. Use your Reflex to minitor temperature at cryogenic level, as low as 20 Kelvin! One time permanent calibration that must be performed at Factory
